Nissan Rogue Service Manual: Removal and installation
CHASSIS CONTROL MODULE

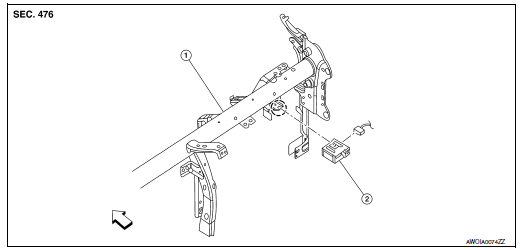

Exploded View
- Steering member
- Chassis control module
Front
Removal and Installation
CAUTION: When replacing chassis control module, configuration of chassis control module is required. Refer to DAS-205, "Work Procedure".
REMOVAL
NOTE: If the chassis control module is replaced, user registration information is erased, and all setting items for Nissan InTuition related parts are erased.
- Remove the glove box assembly. Refer to IP-23, "Removal and Installation".
- Release the pawl and remove the chassis control module.
CAUTION: Do not drop the chassis control module.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When replacing the chassis control module, perform the configuration of chassis control module.
Refer to DAS-205, "Work Procedure".
