Nissan Rogue Service Manual: System description
COMPONENT PARTS

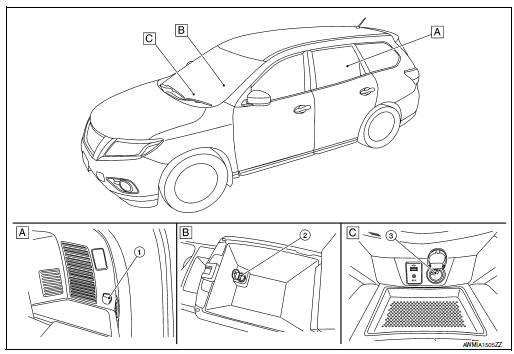

Component Parts Location
- Luggage side lower finisher RH
- Center console
- Cluster lid C
- Rear cargo power socket
- Console power socket
- Front power socket
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONE ...
Wiring diagram
POWER SOCKET
Wiring Diagram
...
